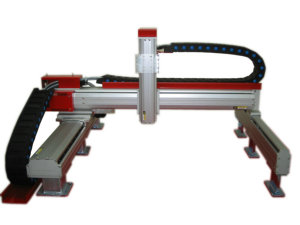

| Y&D-Gseries Universal machine control system combined with excellent, precise positioning capability, the point can be widely used in plastic, PCB cutting / drilling,PCB solder, lock screw, the pick-and-place components (Pick & Place), visual inspection, etc. .. application.
Features:
1:Closed-loop stepper motor or servo motor system, even if the heavy load or will not rapid speed up the occurrence of the phenomenon of out-of-step.
2:Double-track line of precision design, with high-precision ground ball screw-class, high-precision positioning characteristics.
3:Teach-pendant programming, easy instructions, easy to use operation.
4:Universal-application design, with I / O control system, with the production of various types of conveyor application integration.
5: Is available diverse Waterloo sizes uniaxial, with the installation of fixation may be the work of a variety of changes in the size of models.
Application example
Liquid dispensing application Prototyping application Pick & Place application
|
MODEL |
Y&D9300 |
Y&D9500 |
Y&D9600 |
Y&D9860 |
|
Working range |
300/300/100mm |
500/500/100mm |
600/600/100mm |
800/600/100mm |
|
Load Z-AXIS |
8kg |
|
Speed X&Y / Z (mm/sec) |
800 / 320 mm/sec |
|
Repetitive Positioning Accuracy |
±0.01mm / Axis |
|
Program Capacity |
Min 100 Group、4000 points/group
No limit program with memory by PC |
|
Data Storage Type |
CF Card、PC Storage&USB |
|
Byte |
32Bit |
|
Program Display |
Teach Pendant LCD,
VGA port
for optional external monitor |
|
Motor System |
Micro-stepping motor |
|
Control Method |
PTP & CP |
|
Interpolation Function |
3 axes (suit for 3D requirement) |
|
Programming Method |
Teach pendant / Keyboard |
|
I/O Signals Port |
8 Inputs / 8 Outputs |
|
External Control Interface |
RS232 |
|
Power Supply |
AC90~ 260V, 320W |
|
Working Temperature |
10-40℃ |
|
Working Relative Humidity |
20-80% no condensation |
|
Dimensions
(WxDxH mm) |
790*630*500 mm |
890*730*500 mm |
990*830*500 mm |
1090*930*500 mm |
|
Weight |
42KG |
46KG |
50KG |
55KG | |
